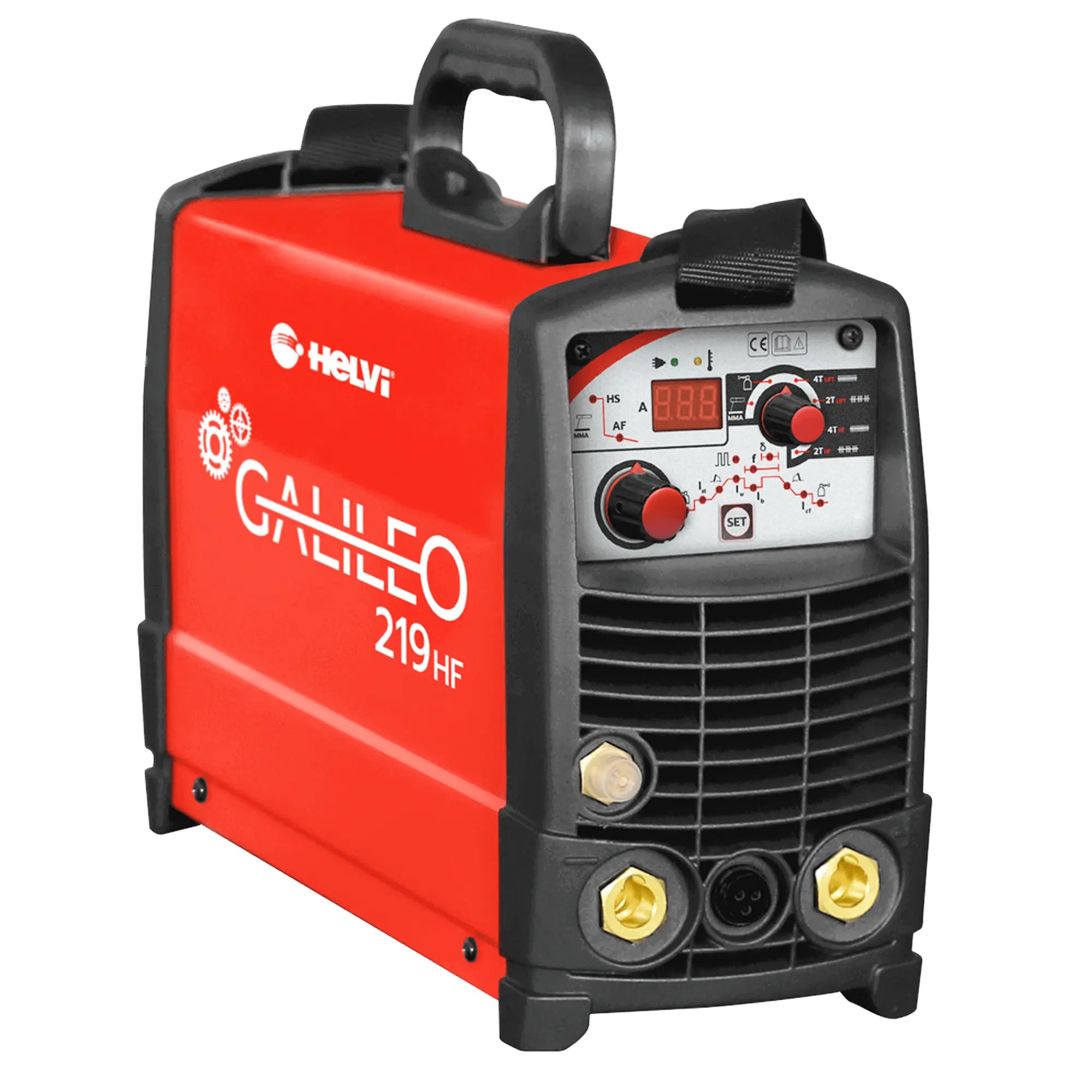

The Welder Helvi Galileo TIG 219 HF it's a professional inverter welder designed for the TIG and MMA welding, with high frequency (HF) trigger for a contactless arc start.
Inverter Welder Helvi Galileo TIG 219 HF: Precision and Versatility for High Quality Welding
Thanks to the advanced technology and digital control, guarantees bow stability, precision and versatility, making it ideal for maintenance, light carpentry and industrial applications.
Advantages of the Welding Machine Helvi Galileo TIG 219 HF
• Double Function: Supports both MMA and TIG welding, offering flexibility in different applications.
• HF trigger: High frequency ignition allows for contactless arc starting, reducing electrode wear and improving welding quality.
• Customizable Parameters: Allows the presetting of all the typical parameters of a TIG welding cycle, such as 2T/4T mode, pre-gas, up slope, pulse frequency, base current, down slope, crater filling current and post-gas.
• Advanced Features for MMA: Includes features such as Hot Start and Arc Force, improving the efficiency and quality of electrode welding.

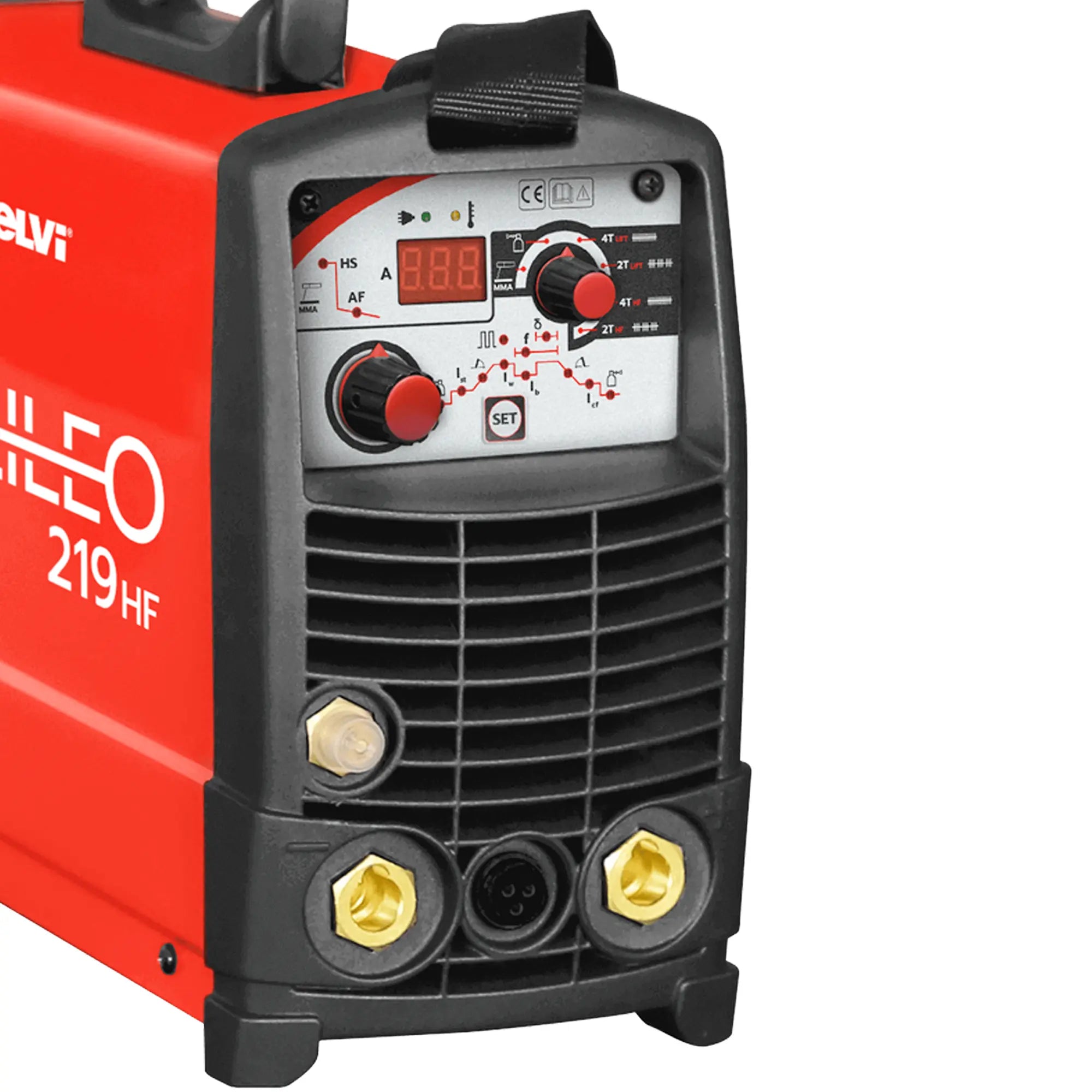

• Digital Display: Equipped with a digital ammeter for displaying the welding current and presetting the parameters.
• Portability: Thanks to its compact design and low weight, it is easily transportable to the workplace.
Technical Specifications
• Supply Voltage: 230V - 50/60Hz
• Power at 60%:
• TIG: 4.2 kW
• MMA: 5.3 kW
• Open Circuit Voltage: 64V
• Current Regulation Range:
• TIG: 5 ÷ 200 A
• MMA: 5 ÷ 160 A
• Duty Cycle at 40°C:
• TIG: 200A @ 20%, 115A @ 60%, 90A @ 100%
• MMA: 160A @ 20%, 95A @ 60%, 75A @ 100%
• Supported Electrode Diameter: 1.6 ÷ 4 mm
• Compatible Electrode Types: 6013, 7018
• Insulation Class: H
• Degree of Protection: IP23S
• Dimensions (LxWxH): 140 x 400 x 245 mm
• Net Weight: 8.2 kg

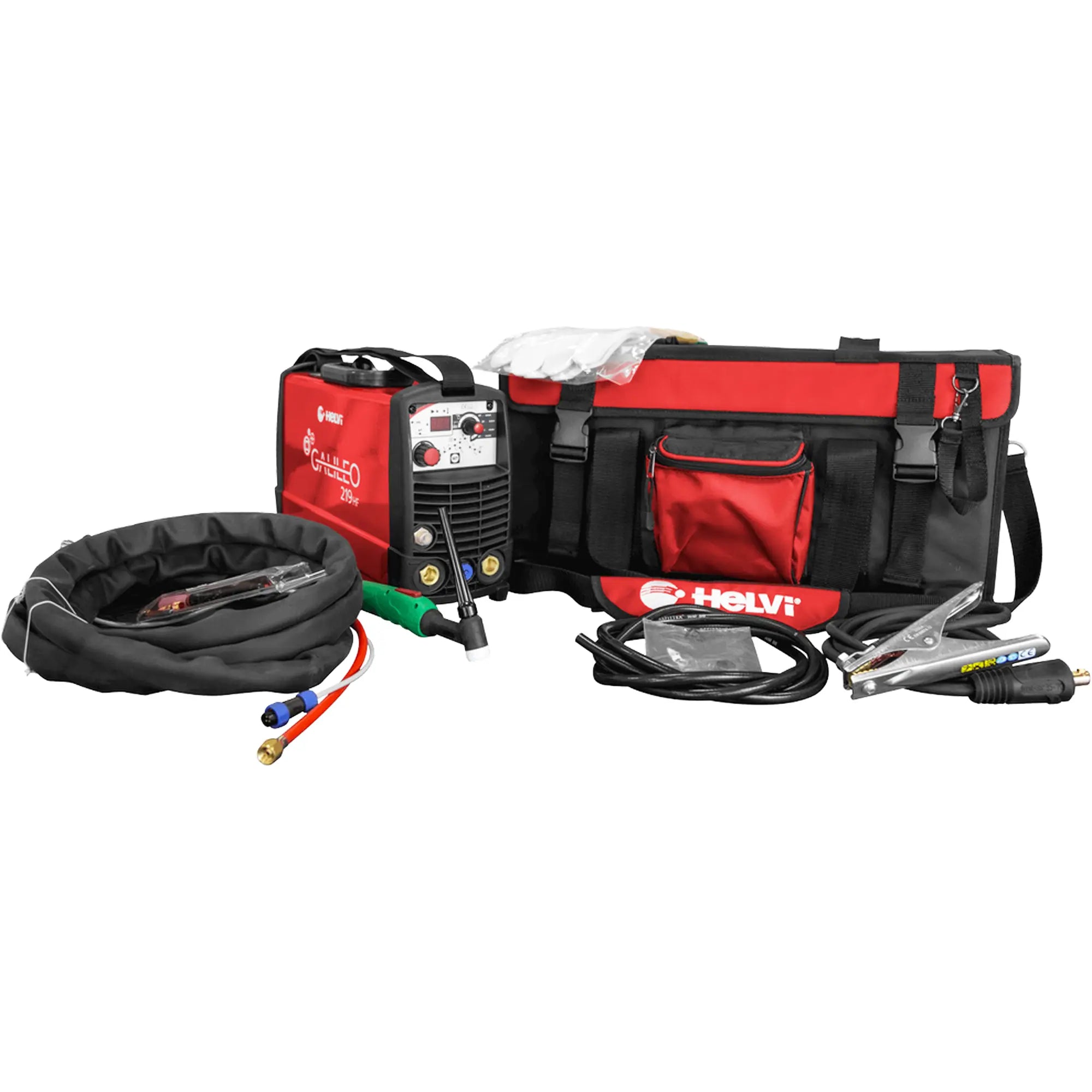

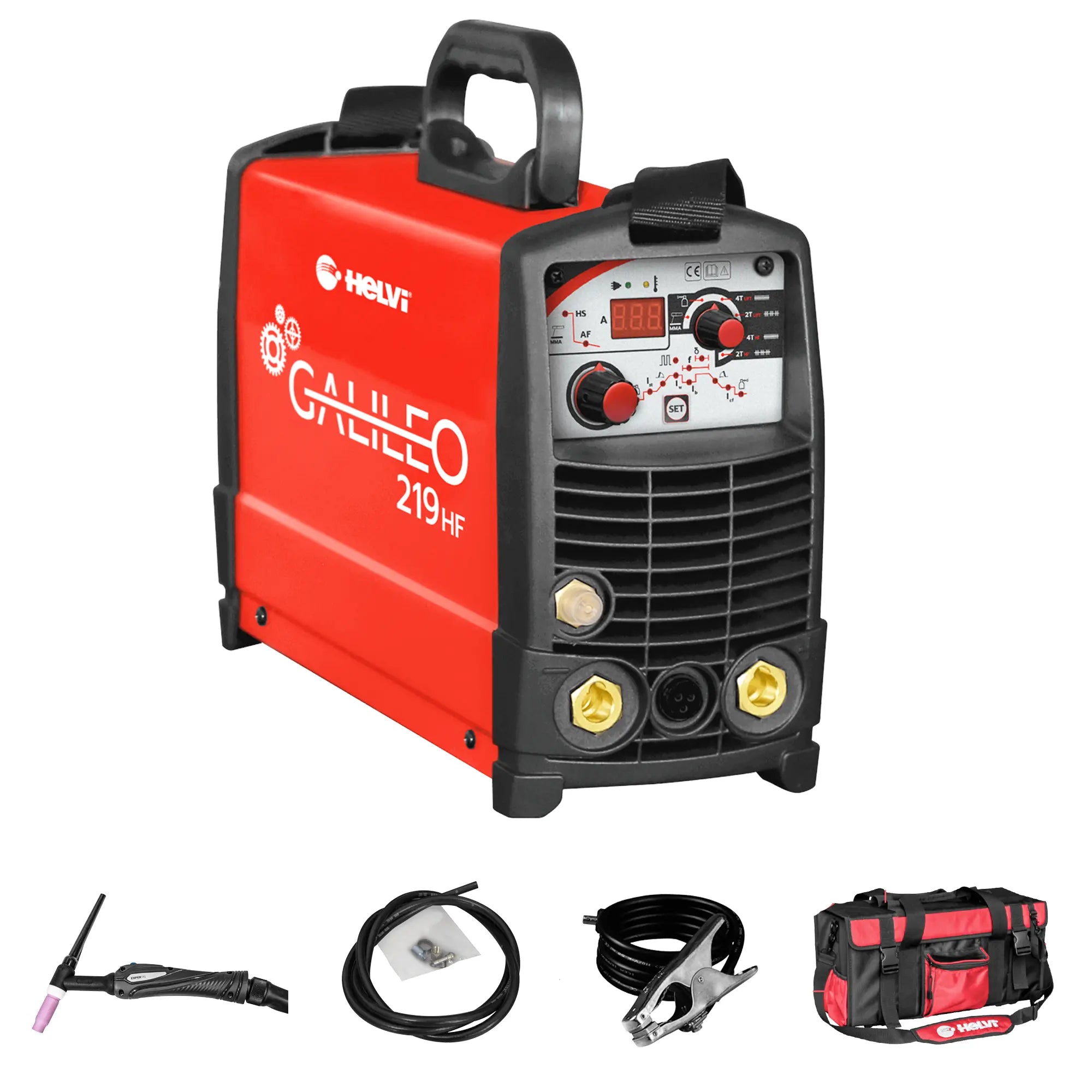

Accessories Included Version with Bag
The welder comes with a hard case Helvi for transport and the following accessories:
• TIG Torch SR26: Length 4 meters with button.
• Ground Cable with Clamp: Length 2 meters, section 25 mm², with 50 mm² connector.
• Gas Pipe Kit: For connection to the gas source.
• TIG gloves Helvi: Size 10, for adequate protection when welding.
• Shoulder Carrying Strap: To facilitate operator mobility.
Why Buy the Welder Helvi Galileo TIG 219 HF?
There Helvi Galileo TIG 219 HF It is ideal for professionals and craftsmen who need a versatile, reliable welder with advanced features. The ability to customize the welding parameters and the functions dedicated to both TIG and MMA make it suitable for a wide range of applications, always guaranteeing high-quality results.
Where to buy it?
You can buy the Inverter Welder Helvi Galileo TIG 219 HF at the shops EmmetiStore or directly online on the official website EmmetiStore, ensuring you a quality product with dedicated customer service.
